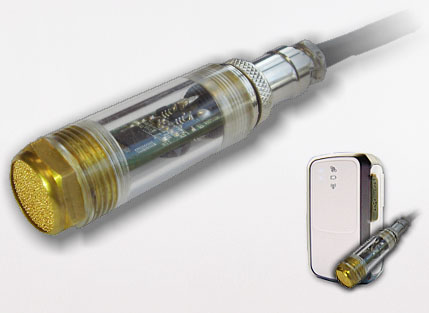

Proprietary data collection extension module for GPS tracker GL200
Secure Flight Mod
– FAA approved onboard all aircraft
Ultra Low Power Consuption
– no batteries
Circular Data Buffer
– 512 kB flash
Temperature
– Range: -20 to 60 °C
(limited range of thermal resistance case)
– Resolution: 0.1 °C
– Accuracy: typ. ± 0.5 °C
Ultra-low temperature
– externally attached sensor
– Sensor Pt100 (IEC751)
– Four-wire connection
– Range: -100 to 50 ° C
– Resolution (effective): 0.2 ° C
– Overall accuracy: better than 1 ° C (Pt100 IEC751 Class A)
– Measuring current: about 0.5 mA
Relative humidity
– Range: 0-100%
– Resolution: 0.1 or 1%
– Accuracy: typ. ± 2% (to 10-90%, and 25 ° C)
Atmospheric pressure
– Range: 50-115kPa
– Resolution: 0.2 kPa
– Accuracy: typ. ± 1kPa
Illumination intensity
– The reference measurement (without calibration)
– Range of approx. 1lx – 50000lx (log scale)
– Output value 0-255
– Spectral range of 430 to 610N
Tilt detection
– Measurement of inclination from the
horizontal position (static measurement)
– Range of 0-180 °
– 1 ° resolution
Acceleration G-Forces measurement
– Record the maximum acceleration
– Range of 1-8 g
– 0.1 g resolution
– Adaptive frequency sampling
Detection of shock / Dropped / Movement
– Setting a flag if there is a defined event
– Continuous measurement
Settable parameters
– On / off setting for each sensor
– Measurement period in minutes
– Data sending period in minutes
– Alarm level for each sensor
– Password protection

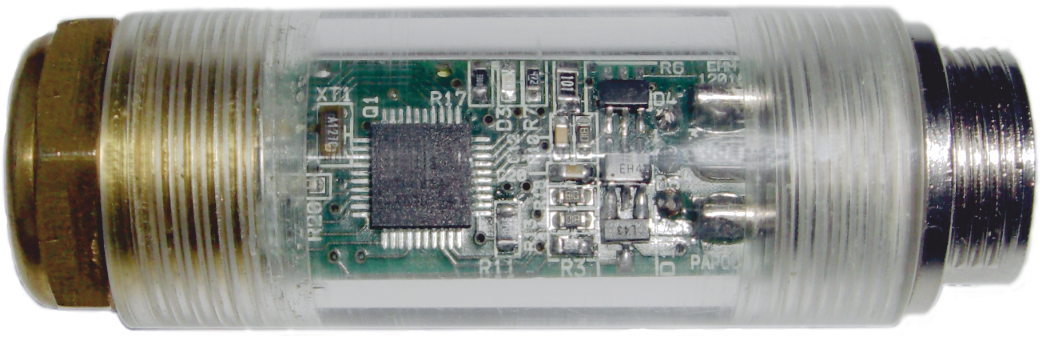

Mechanical design
The dimensions of about roller ø20 x 60 mm. On one side XLR connector for connecting an external thermometer and tracker, the other side of the porous plug of sintered bronze. The body is transparent Plexiglas. Degree of protection IP40.
EMX-1 probe leaflet – download
